Descripción

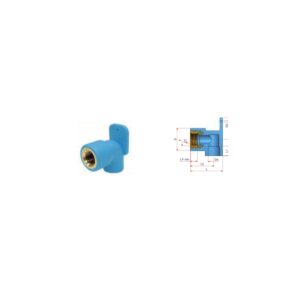

Codo placa 90˚ rosca hembra unión socket
Variantes
| Referencia | Ø | Uds.Caja | Dn (mm) | D1 (mm) | D2 (mm) | F | LF min | D (mm) | L1 (mm) | L2 (mm) | L (mm) | H1 (mm) | H2 (mm) | H (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NTER1612 | 16 mm | 40 | 16,0 | 14,0 | 3,0 | 37,0 | 1/2" | 11,5 | 13,0 | 39,0 | 53,5 | 27,5 | 57,0 | 63,5 | 7,55€ |
| NTER2012 | 20 mm | 40 | 20,0 | 14,0 | 3,0 | 37,0 | 1/2" | 11,5 | 16,0 | 39,0 | 53,5 | 27,5 | 57,0 | 63,5 | 7,55€ |
