Codo 90˚ rosca hembra con
Rango de precios: desde 7,50€ hasta 7,58€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción

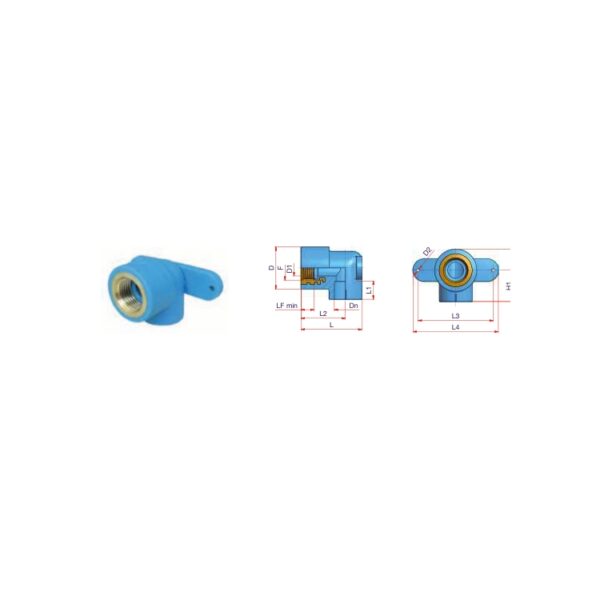

Codo 90˚ rosca hembra con soporte unión socket
Variantes
| Referencia | Ø | Uds.Caja | Dn (mm) | D1 (mm) | D2 (mm) | F | LF min | D (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L (mm) | H1 (mm) | H (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGTF2038 | 20 mm | 40 | 20,0 | 13,0 | 3,0 | 37,0 | 3/8” | 14,0 | 16,0 | 39,0 | 66,0 | 75,0 | 53,5 | 27,5 | 46,0 | 7,50€ |
| NGTF2012 | 20 mm | 40 | 20,0 | 14,0 | 3,0 | 37,0 | 1/2” | 11,5 | 16,0 | 39,0 | 66,0 | 75,0 | 53,5 | 27,5 | 46,0 | 7,58€ |
Valoraciones
No hay valoraciones aún.
