Descripción

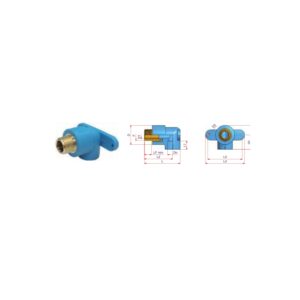

Codo 90˚ rosca macho con soporte unión socket
Variantes
| Referencia | Ø | Uds.Caja | L (mm) | Dn (mm) | D1 (mm) | D2 (mm) | F | LF min | D (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | H1 (mm) | H (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGTM2038 | 20 mm | 40 | 20,0 | 11,0 | 3,0 | 37,0 | 3/8” | 11,0 | 16,0 | 50,0 | 66,0 | 75,0 | 64,5 | 27,5 | 46,0 | 9,05€ |
| NGTM2012 | 20 mm | 40 | 20,0 | 14,0 | 3,0 | 37,0 | 1/2” | 13,2 | 16,0 | 54,0 | 66,0 | 75,0 | 68,5 | 27,5 | 46,0 | 9,05€ |
