Te rosca macho
Rango de precios: desde 9,15€ hasta 24,61€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción

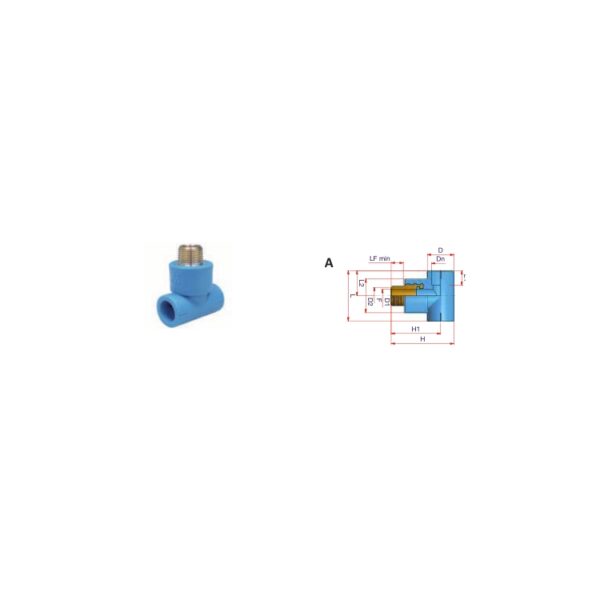

Te rosca macho unión socket
Variantes

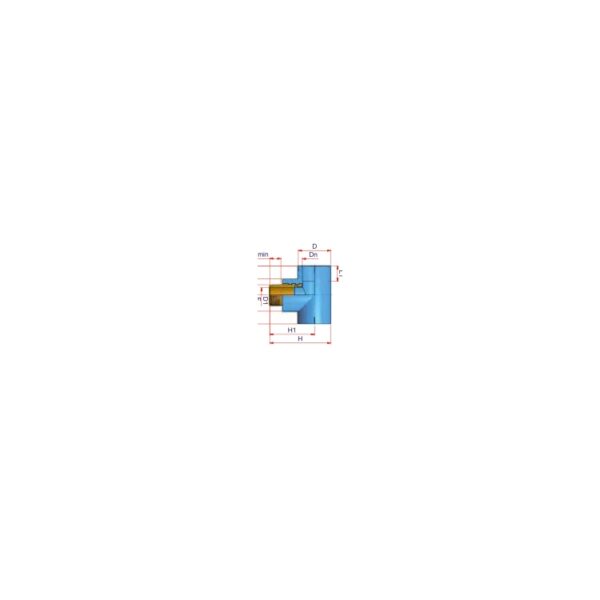

| Referencia | Tipo | Ø | Uds.Caja | Dn (mm) | D1 (mm) | D2 (mm) | F | LF min | D (mm) | L1 (mm) | L2 (mm) | L (mm) | H1 (mm) | H (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NTM1612 | A | 16 mm | 50 | 16,0 | 14,1 | 37,0 | 29,0 | 1/2” | 13,2 | 14,0 | 26,5 | 53,0 | 48,0 | 62,5 | 9,15€ |
| NTM2012 | A | 20 mm | 50 | 20,0 | 14,1 | 37,0 | 29,0 | 1/2” | 13,2 | 16,0 | 27,5 | 55,0 | 54,0 | 68,5 | 9,24€ |
| NTM2512 | A | 25 mm | 40 | 25,0 | 14,1 | 37,0 | 35,0 | 1/2” | 13,2 | 17,0 | 30,5 | 61,0 | 54,0 | 71,5 | 11,03€ |
| NTM2534 | A | 25 mm | 30 | 25,0 | 18,5 | 42,0 | 35,0 | 3/4” | 14,5 | 17,0 | 30,5 | 61,0 | 56,0 | 73,5 | 12,54€ |
| NTM3212 | B | 32 mm | 25 | 32,0 | 14,1 | 42,0 | 42,0 | 1/2” | 13,2 | 20,0 | 37,5 | 75,0 | 56,0 | 77,0 | 15,78€ |
| NTM3234 | B | 32 mm | 24 | 32,0 | 18,5 | 42,0 | 42,0 | 3/4” | 14,5 | 20,0 | 37,5 | 75,0 | 58,0 | 79,0 | 16,55€ |
| NTM321 | B | 32 mm | 14 | 32,0 | 24,0 | 54,0 | 42,0 | 1” | 16,8 | 20,0 | 47,0 | 95,0 | 63,5 | 85,0 | 24,61€ |
