Reducción Macho/Hembra unión socket
Rango de precios: desde 0,94€ hasta 54,45€
- Ficha técnica
- Valoraciones (0)
Variantes

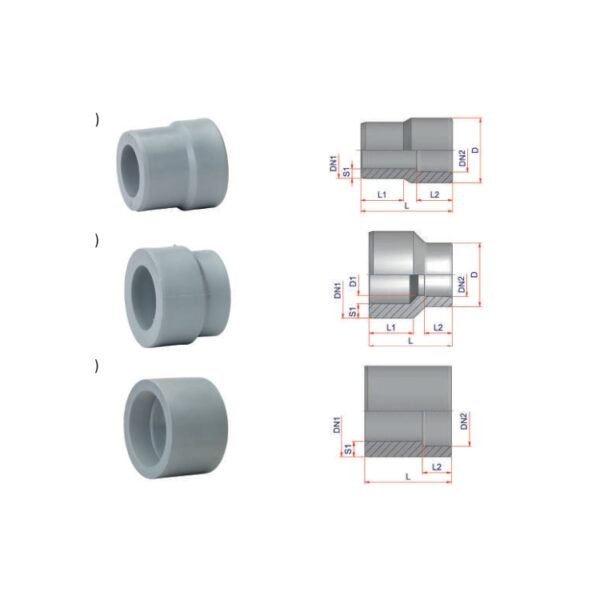

| Referencia | Tipo | Dn1 | Dn2 | Uds.Caja | S1 (mm) | D1 (mm) | D (mm) | L1 (mm) | L2 (mm) | L (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27NR2520 | A | 25 mm | 20 mm | 100 | 4,2 | - | 29,0 | 19,0 | 16,0 | 41,0 | 0,94€ |
| 27NR3225 | A | 32 mm | 25 mm | 80 | 5,4 | - | 35,0 | 22,0 | 17,0 | 44,0 | 1,14€ |
| 27NR4032 | A | 40 mm | 32 mm | 40 | 6,7 | - | 46,0 | 25,0 | 20,0 | 50,0 | 2,25€ |
| 27NR5040 | A | 50 mm | 40 mm | 40 | 8,3 | - | 56,0 | 28,0 | 22,0 | 55,0 | 4,02€ |
| 27NR6350 | A | 63 mm | 50 mm | 20 | 10,5 | - | 70,0 | 32,0 | 25,0 | 65,0 | 6,51€ |
| 27NR7563 | A | 75 mm | 63 mm | 12 | 12,5 | - | 84,0 | 36,0 | 29,0 | 78,0 | 11,37€ |
| 27NR9063 | A | 90 mm | 63 mm | 10 | 15,0 | - | 100,0 | 40,0 | 29,0 | 86,0 | 20,43€ |
| 27NR9075 | A | 90 mm | 75 mm | 18 | 15,0 | - | 100,0 | 40,0 | 33,0 | 86,0 | 22,86€ |
| 27NR11090 | A | 110 mm | 90 mm | 5 | 18,3 | - | 130,0 | 55,0 | 35,0 | 110,0 | 37,11€ |
| 27NR12590 | A | 125 mm | 90 mm | 4 | 20,8 | 82,0 | 146,0 | 52,5 | 37,0 | 103,0 | 47,84€ |
| 27NR3220 | B | 32 mm | 20 mm | 80 | 5,4 | 16,0 | 27,0 | 22,0 | 16,0 | 38,5 | 1,14€ |
| 27NR4020 | B | 40 mm | 20 mm | 80 | 6,7 | 16,0 | 29,0 | 25,0 | 16,0 | 45,0 | 2,25€ |
| 27NR4025 | B | 40 mm | 25 mm | 70 | 6,7 | 21,0 | 35,0 | 25,0 | 17,0 | 45,0 | 2,25€ |
| 27NR5020 | B | 50 mm | 20 mm | 40 | 8,3 | 16,0 | 29,0 | 28,0 | 16,0 | 53,0 | 4,02€ |
| 27NR5025 | B | 50 mm | 25 mm | 40 | 8,3 | 21,0 | 35,0 | 28,0 | 17,0 | 53,0 | 4,02€ |
| 27NR5032 | B | 50 mm | 32 mm | 35 | 8,3 | 30,0 | 46,0 | 28,0 | 20,0 | 53,0 | 4,02€ |
| 27NR6325 | B | 63 mm | 25 mm | 30 | 10,5 | 21,0 | 35,0 | 32,0 | 17,0 | 60,0 | 6,51€ |
| 27NR6332 | B | 63 mm | 32 mm | 30 | 10,5 | 30,0 | 46,0 | 32,0 | 20,0 | 60,0 | 6,51€ |
| 27NR6340 | B | 63 mm | 40 mm | 30 | 10,5 | 37,0 | 56,0 | 32,0 | 22,0 | 60,0 | 6,51€ |
| 27NR7520 | B | 75 mm | 20 mm | 20 | 12,5 | 19,0 | 26,5 | 35,0 | 16,0 | 63,0 | 11,37€ |
| 27NR7525 | B | 75 mm | 25 mm | 20 | 12,5 | 25,0 | 33,0 | 34,0 | 17,0 | 62,0 | 11,37€ |
| 27NR7532 | B | 75 mm | 32 mm | 20 | 12,5 | 28,0 | 43,0 | 34,5 | 20,6 | 63,0 | 11,37€ |
| 27NR7540 | B | 75 mm | 40 mm | 18 | 12,5 | 37,0 | 53,0 | 34,5 | 23,0 | 63,0 | 11,37€ |
| 27NR7550 | B | 75 mm | 50 mm | 18 | 12,5 | 49,0 | 66,5 | 34,0 | 27,0 | 58,8 | 11,37€ |
| 27NR11063 | B | 110 mm | 63 mm | 28 | 18,3 | 59,0 | 88,0 | 46,0 | 29,0 | 80,0 | 34,03€ |
| 27NR125110 | B | 125 mm | 110 mm | 24 | 20,8 | 80,0 | 146,0 | 54,0 | 52,5 | 120,0 | 47,84€ |
| 27NR11075 | C | 110 mm | 75 mm | 12 | 18,3 | - | - | - | 32,0 | 80,0 | 34,03€ |
| 27NR160110 | C | 160 mm | 110 mm | 1 | 26,7 | - | - | - | 38,1 | 104,9 | 50,54€ |
| 27NR160125 | C | 160 mm | 125 mm | 1 | 26,7 | - | - | - | 41,9 | 104,9 | 54,45€ |
