Enlace rosca macho hexagonal unión socket
Rango de precios: desde 30,05€ hasta 313,76€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción
Características
Material: PP-RCT RA7050 color gris
Sistema de unión: Termofusión socket
Certificados
ASTM F2389, ASTM F2023, NSF14, NSF61,
ICC-ES LC 1004 PMG, CSA B137.11-2009, EN ISO 15874
Variantes

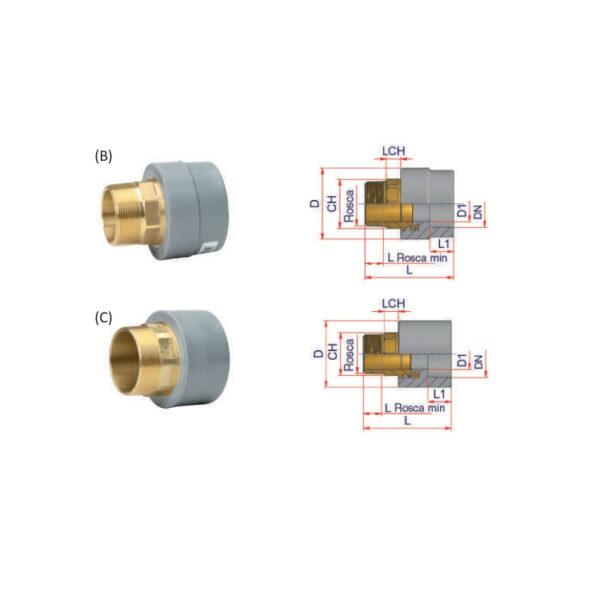

| Referencia | Tipo | Dn | Uds.Caja | D1 (mm) | Rosca | L1 (mm) | D (mm) | L (mm) | CH | LCH | Rosca mín. (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27NRFM401L | C | 40 mm | - | 24,0 | 56,0 | 1" | 22,0 | 86,0 | 34,0 | 13,0 | 16,8 | 30,05€ |
| 27NRFM40114L | B | 40 mm | 20 | 33,0 | 65,0 | 1 1/4" | 22,0 | 91,0 | 42,0 | 15,0 | 19,1 | 41,58€ |
| 27NRFM50112L | B | 50 mm | 15 | 33,0 | 70,0 | 1 1/2" | 25,0 | 93,0 | 45,0 | 15,0 | 19,1 | 53,71€ |
| 27NRFM50114L | D | 50 mm | - | 38,0 | 75,0 | 1" 1/4 | 25,0 | 93,5 | 50,0 | 15,0 | 19,1 | 41,18€ |
| 27NRFM632L | B | 63 mm | 6 | 38,0 | 88,0 | 2" | 29,0 | 97,5 | 52,0 | 15,0 | 19,1 | 74,07€ |
| 27NRFM63112L | D | 63 mm | - | 49,5 | 92,0 | 1" 1/2 | 29,0 | 105,0 | 60,0 | 18,0 | 23,4 | 57,05€ |
| 27NRFM752L | D | 75 mm | - | 49,5 | 103,0 | 2" | 33,0 | 109,0 | 60,0 | 18,0 | 23,4 | 80,52€ |
| 27NRFM75212L | B | 75 mm | 4 | 63,5 | 110,0 | 2 1/2" | 33,0 | 112,0 | 80,0 | 20,0 | 26,7 | 107,52€ |
| 27NRFM903L | B | 90 mm | 2 | 75,0 | 129,0 | 3" | 37,0 | 129,0 | 90,0 | 23,0 | 29,8 | 195,02€ |
| 27NRFM1104L | B | 110 mm | 2 | 99,5 | 160,0 | 4" | 43,0 | 148,0 | 115,0 | 30,0 | 35,8 | 270,09€ |
| 27NRFM1254L | C | 125 mm | 1 | 99,5 | 160,0 | 4" | 47,5 | 152,5 | 115,0 | 30,0 | 35,8 | 313,76€ |
