Codo roscado hembra unión socket
Rango de precios: desde 6,35€ hasta 84,08€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción
Características
Material: PP-RCT RA7050 color gris
Sistema de unión: Termofusión socket
Certificados
ASTM F2389, ASTM F2023, NSF14, NSF61,
ICC-ES LC 1004 PMG, CSA B137.11-2009, EN ISO 15874
Variantes

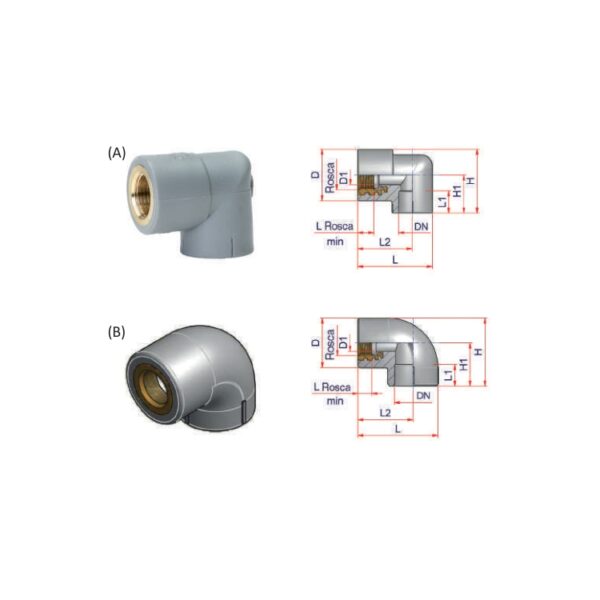

| Referencia | Tipo | Dn | Uds.Caja | D1 (mm) | Rosca | L1 (mm) | D (mm) | L2 (mm) | L (mm) | H1 (mm) | H (mm) | Rosca | CH | LCH | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27NGF2012L | A | 20 mm | 60 | 14,0 | 11,5 | 1/2" | 16,0 | 39,0 | 54,0 | 27,0 | 46,0 | 11,5 | - | - | 6,35€ |
| 27NGF2512L | A | 25 mm | 50 | 14,0 | 11,5 | 1/2" | 17,0 | 39,0 | 56,0 | 30,0 | 49,0 | 11,5 | - | - | 10,11€ |
| 27NGF2534L | A | 25 mm | 50 | 19,0 | 13,2 | 3/4" | 17,0 | 39,0 | 56,0 | 30,0 | 52,0 | 13,2 | - | - | 10,88€ |
| 27NGF3212L | B | 32 mm | 35 | 14,0 | 11,5 | 1/2" | 20,0 | 46,0 | 67,0 | 36,0 | 57,0 | 11,5 | - | - | 12,55€ |
| 27NGF3234L | B | 32 mm | 35 | 19,0 | 13,2 | 3/4" | 20,0 | 46,0 | 67,0 | 36,0 | 57,0 | 13,2 | - | - | 13,20€ |
| 27NGF321L | B | 32 mm | 30 | 24,0 | 17,8 | 1" | 20,0 | 46,0 | 67,0 | 47,0 | 74,0 | 17,8 | - | - | 22,60€ |
| 27NGF401L | B | 40 mm | - | 24,0 | 17,8 | 1" | 24,0 | 52,0 | 79,0 | 43,0 | 72,0 | 17,8 | - | - | 26,56€ |
| 27NGF50114L | B | 50 mm | - | 33,0 | 21,4 | 1" 1/4 | 26,0 | 66,0 | 101,0 | 51,0 | 86,0 | 21,4 | 46,0 | 15,0 | 41,54€ |
| 27NGF50112L | B | 50 mm | - | 40,0 | 19,0 | 1" 1/2 | 26,0 | 66,0 | 101,0 | 51,0 | 86,0 | 19,0 | 55,0 | 15,0 | 59,87€ |
| 27NGF63112L | B | 63 mm | - | 40,0 | 19,0 | 1" 1/2 | 30,0 | 77,0 | 121,0 | 62,0 | 106,0 | 19,0 | 55,0 | 15,0 | 75,64€ |
| 27NGF632L | B | 63 mm | - | 50,0 | 23,7 | 2" | 30,0 | 82,0 | 126,0 | 62,0 | 106,0 | 23,7 | 65,0 | 20,0 | 84,08€ |
