MULTIFUNCTIONAL MAGNETIC DIRT SEPARATOR FOR BOILERS AND HEAT PUMPS
Rango de precios: desde 62,85€ hasta 227,21€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción

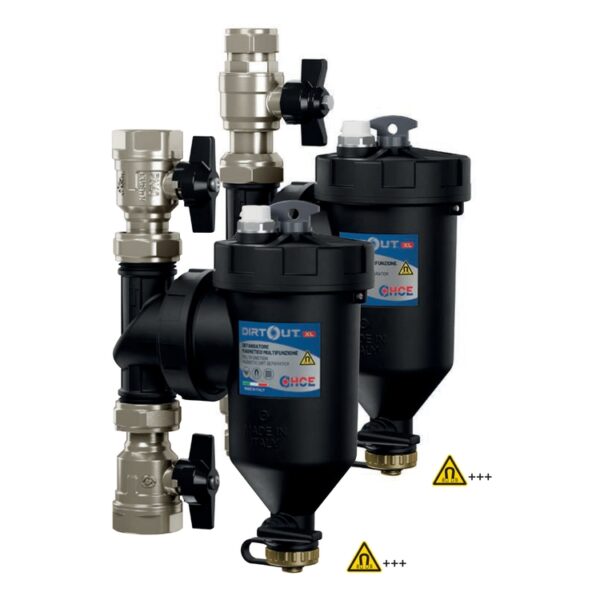

Multifunctional magnetic dirt separator filter
in polymer, with ball valves, FF connections
Technopolymer body
• Filter cartridge in AISI 304 stainless steel
• Elastomer hydraulic seals
• Threaded connections FF UNI-EN-ISO 228
or mechanical compression for copper pipe
Directable for horizontal or vertical or 45° installation
• Built-in drain valve
• Max. working pressure: 3 bar
• Max. operating temperature: 0÷90 °C
• Neodymium magnet B = 14000 gauss
• Filtration rate: 500 µm and 800 µm
Variantes
| Size | Product | Code | Unit | Package | PVP (€) |
|---|---|---|---|---|---|
| 3/4” F x 3/4” F | DirtOUT™ XL | DF00100034 | 1 | 6 | 204,04€ |
| 1” F x 1” F | DirtOUT™ XL | DF00100100 | 1 | 6 | 210,16€ |
| 1” 1/4 F x 1” 1/4 F | DirtOUT™ XL | DF00100114 | 1 | 6 | 227,21€ |
| ø22 x ø22 | DirtOUT™ XL | DF00100022 | 1 | 6 | 216,16€ |
| ø28 x ø28 | DirtOUT™ XL | DF00100028 | 1 | 6 | 216,49€ |
| per/for DirtOUT™ XL | Coibentazione / Insulation (pag. 52-53) | COIB0001 | 1 | 6 | 62,85€ |
