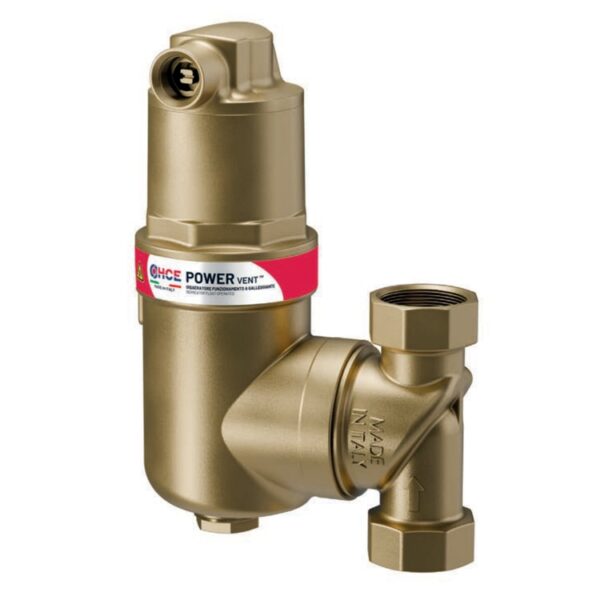

FLOAT OPERATED DIRECTABLE AIR SEPARATOR
Rango de precios: desde 215,28€ hasta 232,51€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción
Float operated directable air separator
Brass body
• Adjustable air vent valve
• Elastomer hydraulic seals
• Threaded connections FF UNI-EN-ISO 228
or mechanical compression for copper pipe
Directable for horizontal or vertical or 45° installation
• Integrated 1/2″ drain
• Maximum discharge pressure: 10 bar
• Max. operating pressure: 10 bar
• Max. operating temperature 110 °C
Variantes
| Size | Code | Unit | Package | PVP (€) |
|---|---|---|---|---|
| 3/4” F x 3/4” F | DA00200034 | 1 | 6 | 215,28€ |
| 1” F x 1” F | DA00200100 | 1 | 6 | 218,59€ |
| ø22 x ø22 mm | DA00200022 | 1 | 6 | 224,16€ |
| ø28 x ø28 mm | DA00200028 | 1 | 6 | 232,51€ |
