Enlace rosca hembra unión socket
Rango de precios: desde 25,06€ hasta 228,24€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción
Características
Material: PP-RCT RA7050 color gris
Sistema de unión: Termofusión socket
Certificados
ASTM F2389, ASTM F2023, NSF14, NSF61,
ICC-ES LC 1004 PMG, CSA B137.11-2009, EN ISO 15874
Variantes

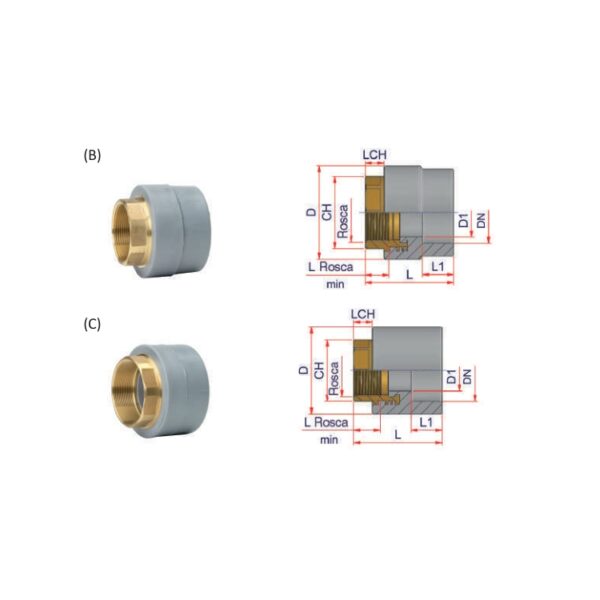

| Referencia | Tipo | Dn | Uds.Caja | D1 (mm) | Rosca | L1 (mm) | D (mm) | L (mm) | CH | LCH | Rosca mín. (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27NRFF401L | C | 40 mm | - | 24,0 | 56,0 | 1" | 18,0 | 22,0 | 38,0 | 13,0 | 52,0 | 25,06€ |
| 27NRFF40114L | B | 40 mm | 25 | 33,0 | 65,0 | 1 1/4" | 21,4 | 22,0 | 46,0 | 15,0 | 67,0 | 41,03€ |
| 27NRFF50112L | B | 50 mm | 18 | 39,5 | 75,0 | 1 1/2" | 25,0 | 71,0 | 55,0 | 15,0 | 19,0 | 49,27€ |
| 27NRFF50114L | D | 50 mm | - | 33,0 | 70,0 | 1" 1/4 | 25,0 | 71,0 | 46,0 | 15,0 | 21,4 | 42,76€ |
| 27NRFF632L | B | 63 mm | 12 | 50,0 | 82,0 | 2" | 29,0 | 80,0 | 65,0 | 20,0 | 23,7 | 76,90€ |
| 27NRFF63112L | D | 63 mm | - | 39,5 | 88,0 | 1" 1/2 | 29,0 | 75,0 | 55,0 | 15,0 | 19,0 | 53,15€ |
| 27NRFF752L | D | 75 mm | - | 50,0 | 103,0 | 2" | 33,0 | 84,0 | 65,0 | 20,0 | 23,7 | 74,67€ |
| 27NRFF75212L | B | 75 mm | 4 | 63,5 | 110,0 | 2 1/2" | 33,0 | 89,0 | 80,0 | 25,0 | 30,2 | 97,56€ |
| 27NRFF903L | B | 90 mm | 4 | 75,0 | 129,0 | 3" | 37,0 | 99,0 | 95,0 | 24,0 | 33,3 | 192,27€ |
| 27NRFF1104L | B | 110 mm | 2 | 99,5 | 160,0 | 4" | 43,0 | 111,0 | 120,0 | 30,0 | 39,3 | 197,94€ |
| 27NRFF1254L | C | 125 mm | 2 | 99,5 | 160,0 | 4" | 47,5 | 115,5 | 120,0 | 30,0 | 39,3 | 228,24€ |
