Descripción

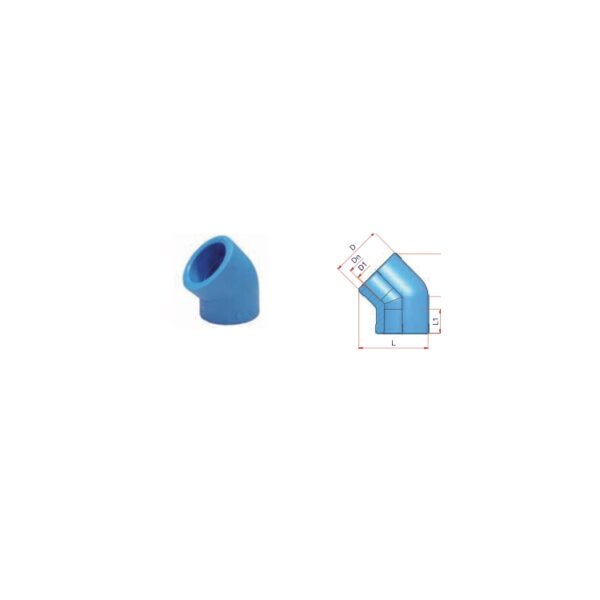

Codo 45O unión socket
Variantes
| Referencia | Ø | Uds.Caja | Dn (mm) | D1 (mm) | D (mm) | L1 (mm) | L (mm) | H1 (mm) | H (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|
| NC4516 | 16 mm | 150 | 16,0 | 15,0 | 25,0 | 13,0 | 33,0 | 16,5 | 37,0 | 0,83€ |
| NC4520 | 20 mm | 200 | 20,0 | 16,5 | 29,0 | 16,0 | 33,0 | 21,5 | 46,0 | 0,84€ |
| NC4525 | 25 mm | 150 | 25,0 | 23,5 | 34,0 | 16,0 | 46,0 | 24,5 | 53,5 | 1,09€ |
| NC4532 | 32 mm | 40 | 32,0 | 30,0 | 42,0 | 20,0 | 56,0 | 29,0 | 64,0 | 1,63€ |
| NC4540 | 40 mm | 140 | 40,0 | 36,0 | 53,0 | 22,0 | 67,0 | 32,0 | 72,5 | 3,66€ |
| NC4550 | 50 mm | 70 | 50,0 | 47,5 | 66,0 | 25,0 | 83,5 | 39,5 | 90,0 | 6,83€ |
| NC4563 | 63 mm | 35 | 63,0 | 60,0 | 83,0 | 29,0 | 102,0 | 45,0 | 105,0 | 9,22€ |
| NC4575 | 75 mm | 16 | 75,0 | 70,0 | 99,0 | 33,0 | 129,5 | 65,0 | 145,0 | 14,90€ |
| NC4590 | 90 mm | 12 | 90,0 | 86,0 | 123,5 | 37,0 | 145,0 | 57,0 | 140,0 | 27,92€ |
| NC45110 | 110 mm | 6 | 110,0 | 100,0 | 146,0 | 43,0 | 172,5 | 70,0 | 169,5 | 46,51€ |
| NC45125 | 125 mm | 4 | 125,0 | 113,0 | 165,0 | 47,5 | 194,0 | 78,0 | 189,5 | 64,78€ |
