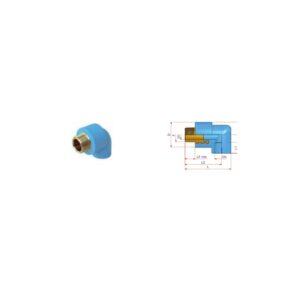

Codo 90˚ rosca macho
Rango de precios: desde 8,48€ hasta 25,51€
- Descripción
- Ficha técnica
- Valoraciones (0)
Descripción
Codo 90˚ rosca macho unión socket
Variantes
| Referencia | Ø | Uds.Caja | Dn (mm) | D1 (mm) | F | LF min | D (mm) | L1 (mm) | L2 (mm) | L (mm) | H1 (mm) | H (mm) | PVP (€) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGM1612 | 16 mm | 50 | 16,0 | 14,0 | 37,0 | 1/2” | 13,2 | 13,0 | 54,0 | 68,5 | 27,5 | 46,0 | 9,13€ |
| NGM2012 | 20 mm | 60 | 20,0 | 14,0 | 37,0 | 1/2” | 13,2 | 16,0 | 54,0 | 68,5 | 27,5 | 46,0 | 8,48€ |
| NGM2512 | 25 mm | 50 | 25,0 | 14,0 | 37,0 | 1/2” | 13,2 | 17,0 | 54,0 | 71,5 | 30,5 | 49,0 | 10,06€ |
| NGM2534 | 25 mm | 40 | 25,0 | 18,5 | 42,0 | 3/4” | 14,5 | 17,0 | 54,0 | 73,5 | 30,5 | 51,5 | 10,27€ |
| NGM3212 | 32 mm | 30 | 32,0 | 14,0 | 42,0 | 1/2” | 13,2 | 18,0 | 61,0 | 82,0 | 36,0 | 57,0 | 12,54€ |
| NGM3234 | 32 mm | 30 | 32,0 | 18,5 | 42,0 | 3/4” | 14,5 | 18,0 | 61,0 | 84,0 | 36,0 | 57,0 | 12,68€ |
| NGM321 | 32 mm | 25 | 32,0 | 24,0 | 54,0 | 1” | 16,8 | 20,0 | 65,0 | 86,5 | 47,0 | 74,0 | 25,51€ |
Valoraciones
No hay valoraciones aún.
